[오므론] 오므론 RELAY MY2N (S) AC110V

위 공식 카탈로그 이미지에 실린 내용을 텍스트로 옮긴 자료입니다 (검색·스크린리더용). 원문 표기를 따르며, 실제 사양은 카탈로그 이미지와 제조사 자료를 우선하세요.

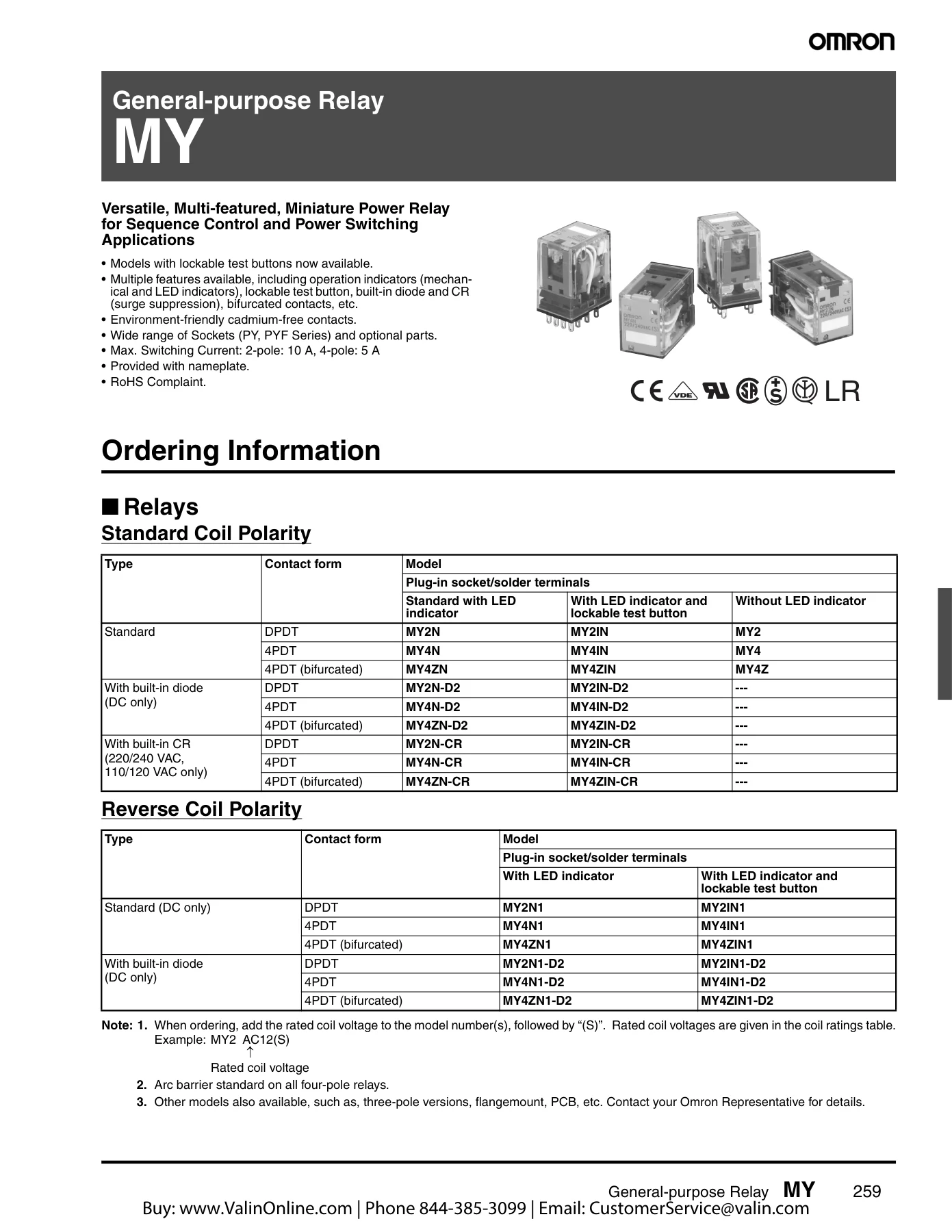

오므론 OMRON_MY_Relay p.1

수록 모델: MY4IN1, 4PDT, MY2IN1, MY2N1, MY2N1-D2, MY4IN1-D2, MY4ZN1, MY4IN-CR, AC12, MY4N-CR, MY4N, MY4N1, MY4ZIN-D2, MY2IN-D2, MY4ZIN, MY2IN1-D2, MY4ZN, MY2N-D2, MY4ZIN1-D2, MY4ZN-CR, MY2N-CR, 2-pole, MY4ZIN-CR, MY2N, MY4Z, MY4ZIN1, MY2IN, MY4IN, MY4N-D2, MY4IN-D2

MY2N1 사양: 정격전류 10A; 정격전압 240VAC

MY2N MY2N-D2 MY2N-CR MY2N1 MY2N1-D2 General-purpose Relay MY General-purpose Relay Versatile, Multi-featured, Miniature Power Relay for Sequence Control and Power Switching Applications • Models with lockable test buttons now available. • Multiple features available, including operation indicators (mechan- ical and LED indicators), lockable test button, built-in diode and CR (surge suppression), bifurcated contacts, etc. • Environment-friendly cadmium-free contacts. • Wide range of Sockets (PY, PYF Series) and optional parts. • Max. Switching Current: 2-pole: 10 A, 4-pole: 5 A • Provided with nameplate. • RoHS Complaint. Ordering Information ■Relays Standard Coil Polarity Reverse Coil Polarity Note: 1. When ordering, add the rated coil voltage to the model number(s), followed by “(S)”. Rated coil voltages are given in the coil ratings table. Example: MY2 AC12(S) Rated coil voltage 2. Arc barrier standard on all four-pole relays. 3. Other models also available, such as, three-pole versions, flangemount, PCB, etc. Contact your Omron Representative for details. Type Contact form Model Plug-in socket/solder terminals Standard with LED indicator With LED indicator and
